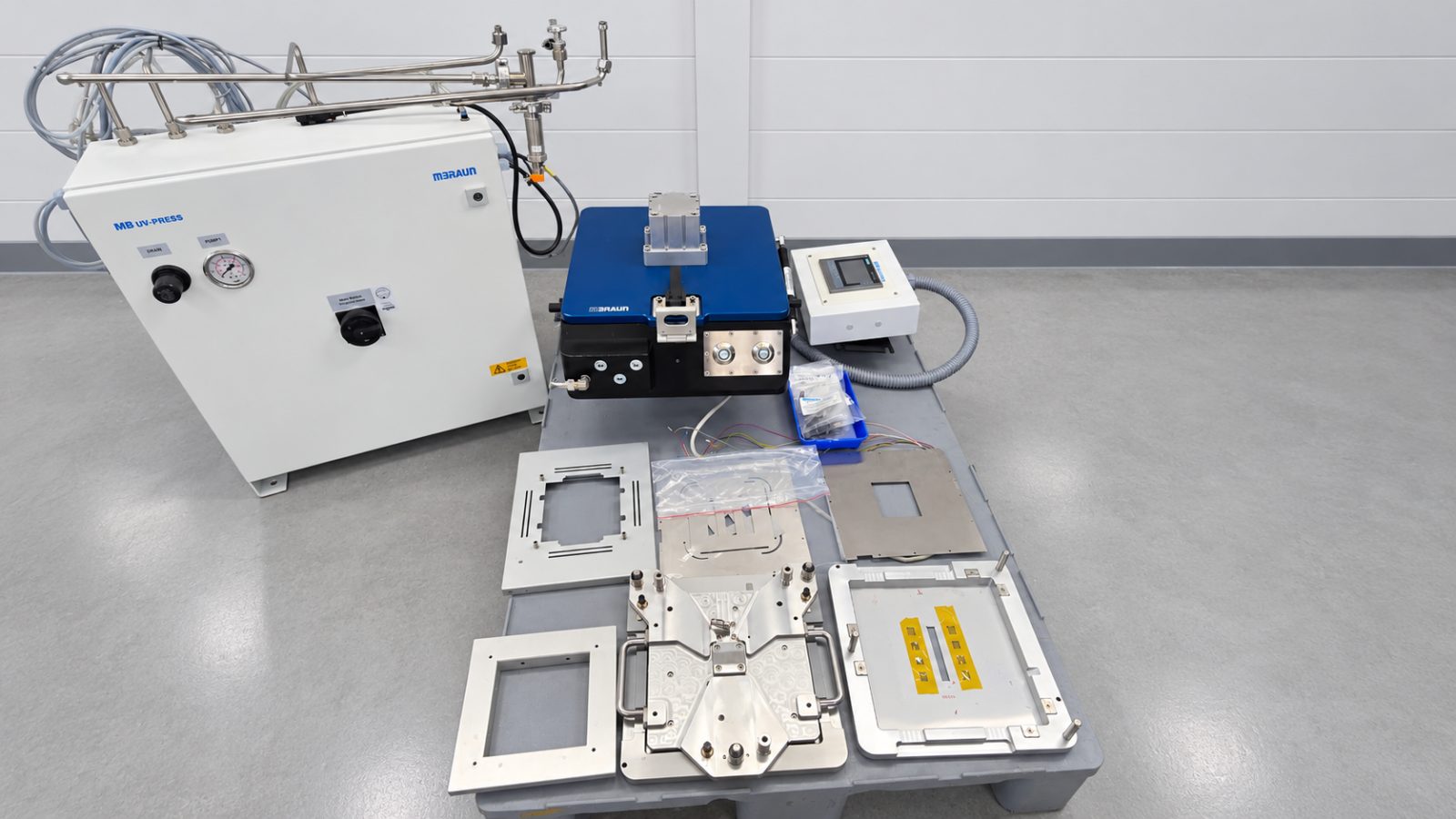

MBraun UV-Press – view 1

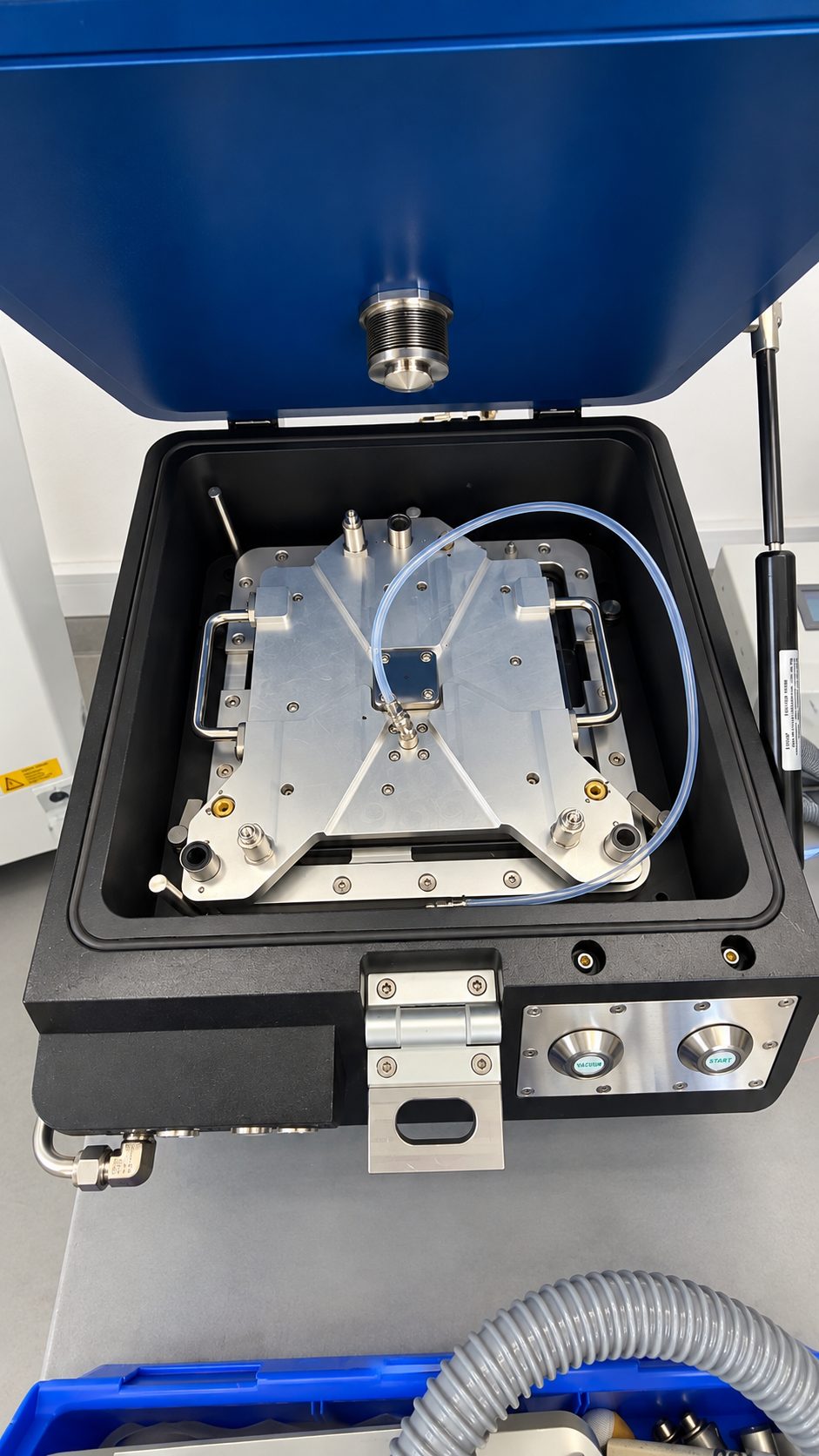

MBraun UV-Press – view 2
MBraun

MBraun UV-Press

The MBraun MB UV-Press bonds and hermetically seals sensitive samples (e.g. OLEDs, perovskite or battery cells) under inert gas – fully integrated into your glovebox, with no oxygen or moisture contact. Bonding and UV curing happen in a single step, right where the samples are made. The unit is used but was rarely operated and has not been in use for the past few years.

The process in three steps

1. Manually load the sample between the substrate and cover glass. 2. Bonding with vacuum or mechanical pressure – the glass plates are brought together evenly and pressed via a vacuum chuck and pneumatic drive. 3. Curing – the adhesive is cured by UV lamp in under 3 seconds.

ManufacturerMBraun
ModelMB UV-Press
FunctionSample encapsulation (bonding + UV curing) inside the glovebox
UV lampDymax, 400 W, filtered cold light
Light intensity105–225 mW/cm²
Cure timeunder 3 seconds
Substrate sizeup to 203.2 × 203.2 mm
Sandwich height0.7–1.1 mm
Pressurevacuum chuck + pneumatic drive, controlled via gauge & manual valve
ControlSiemens KTP400 operator panel
ConditionUsed, rarely operated – manuals available
Viewingon site possible
Inquire now More lab equipment
At a glance

Highlights & benefits

Bonding & sealing in a single step
Fully integrated into the glovebox – no O₂/moisture contact
Dymax UV lamp (400 W), filtered cold light – minimal heat
Extremely short, reproducible exposure times (< 3 s)
Precise pressure control via vacuum chuck & gauge
Convenient control via KTP400 operator panel
Applications

Ideal for

Encapsulation of OLEDs
Perovskite solar cells
Battery cells
Thermally sensitive samples
Research & small-series production under inert gas
