Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – used, refurbished
AI-edited
On requestPfeiffer Vacuum
Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – view 1
Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – view 2
Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – view 3
Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – view 4
Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump – view 5
Pfeiffer Vacuum

Pfeiffer Vacuum TPH 2200 U Turbomolecular Pump

Comprehensive Pfeiffer Vacuum high-vacuum system with the large TPH 2200 U turbomolecular pump plus numerous vacuum components – angle valve, ISO-K flanges, stainless-steel and flexible lines, pneumatic components and further valves. The system comes from an industrial / technical installation and is sold exactly as shown in the photos. The components ran before dismantling and have been in storage since.

Further components included

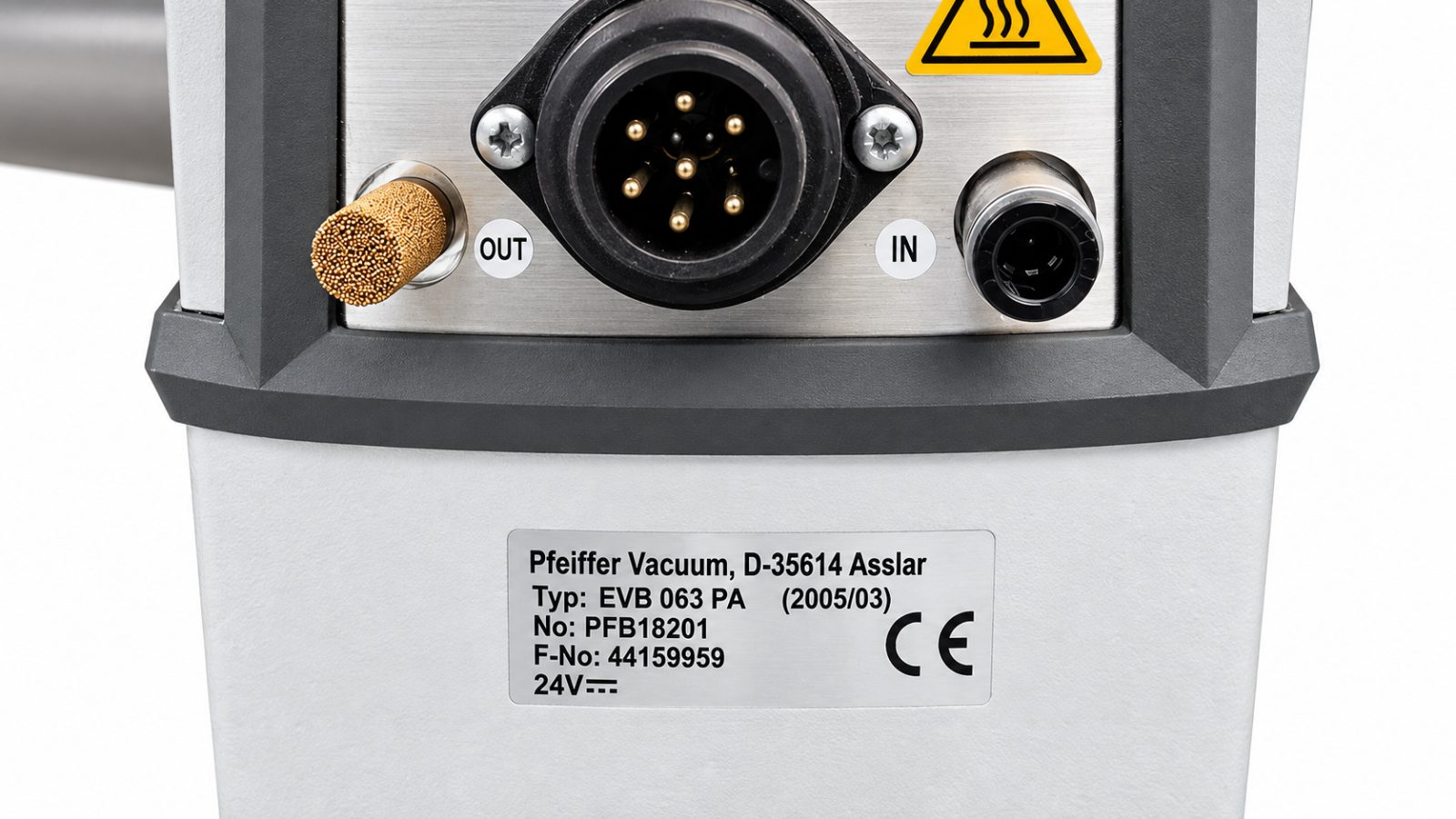

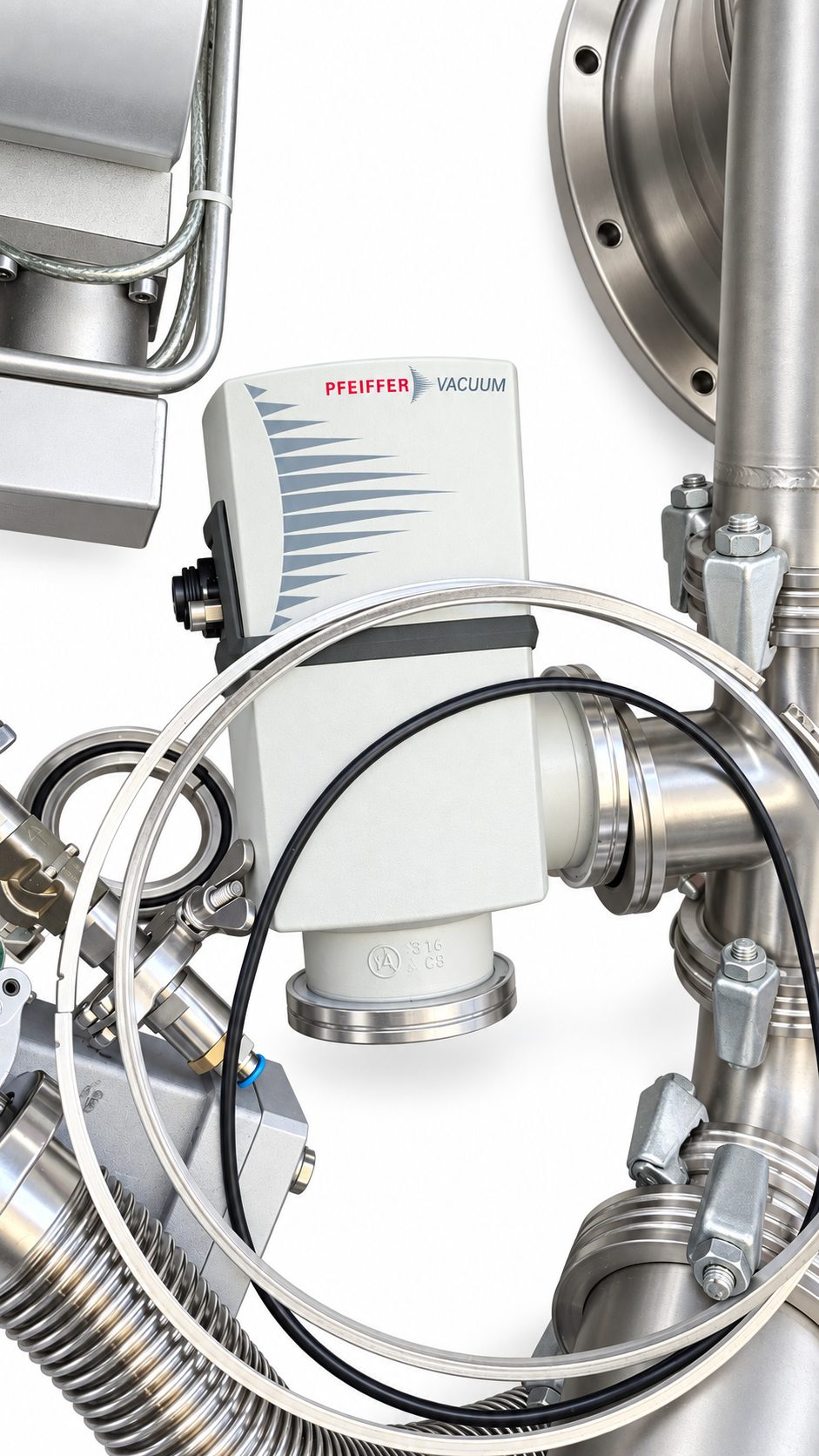

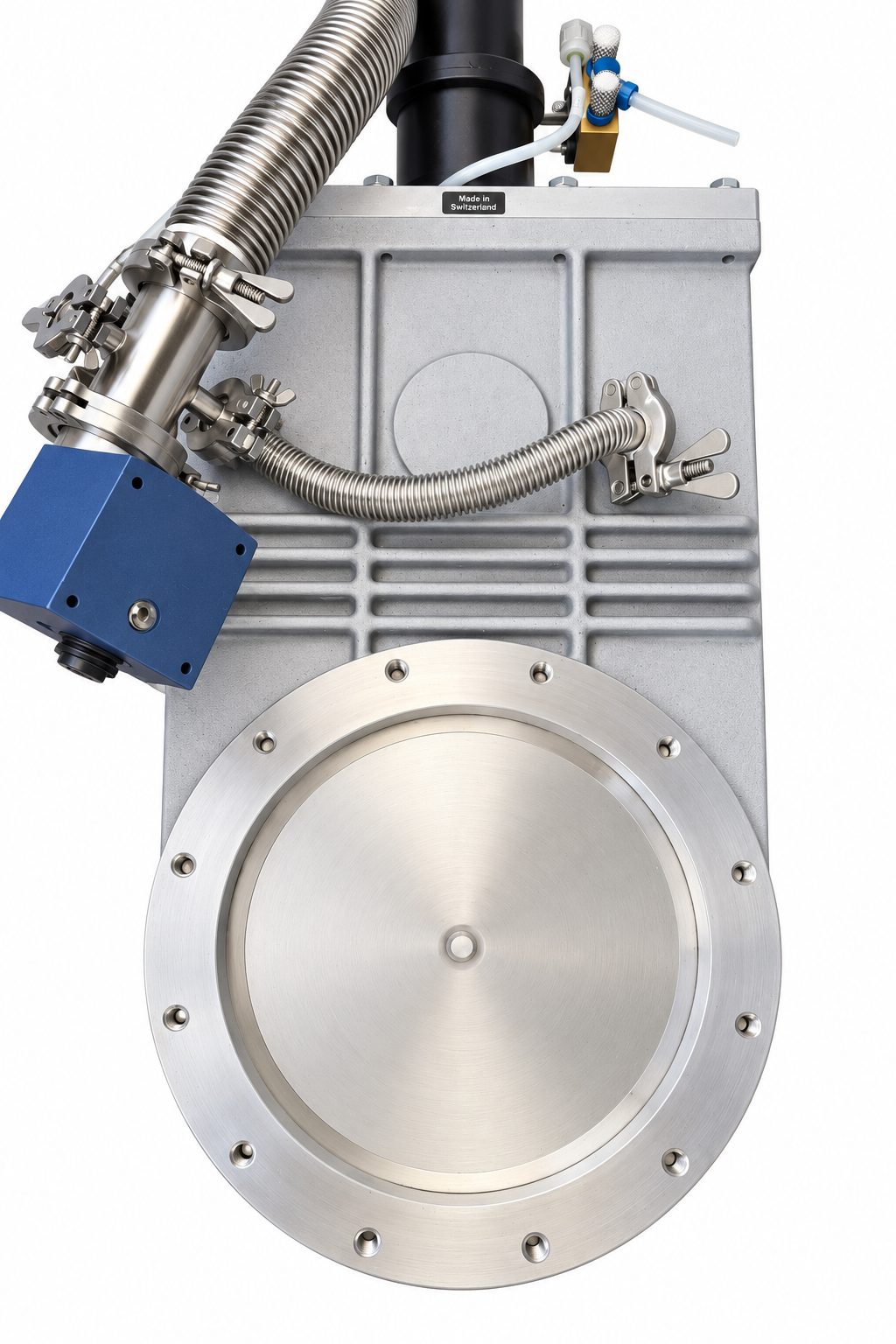

Pfeiffer Vacuum EVB 063 PA angle valve (part no. PFB18201, DN 63 ISO-K, 24 V DC, electro-pneumatically actuated, bellows-sealed, with position indicator / control valve), various ISO-K vacuum flanges, stainless-steel vacuum lines, flexible vacuum lines, pneumatic components and further valves and connectors – as shown in the photos. Scope of delivery: everything visible in the images.

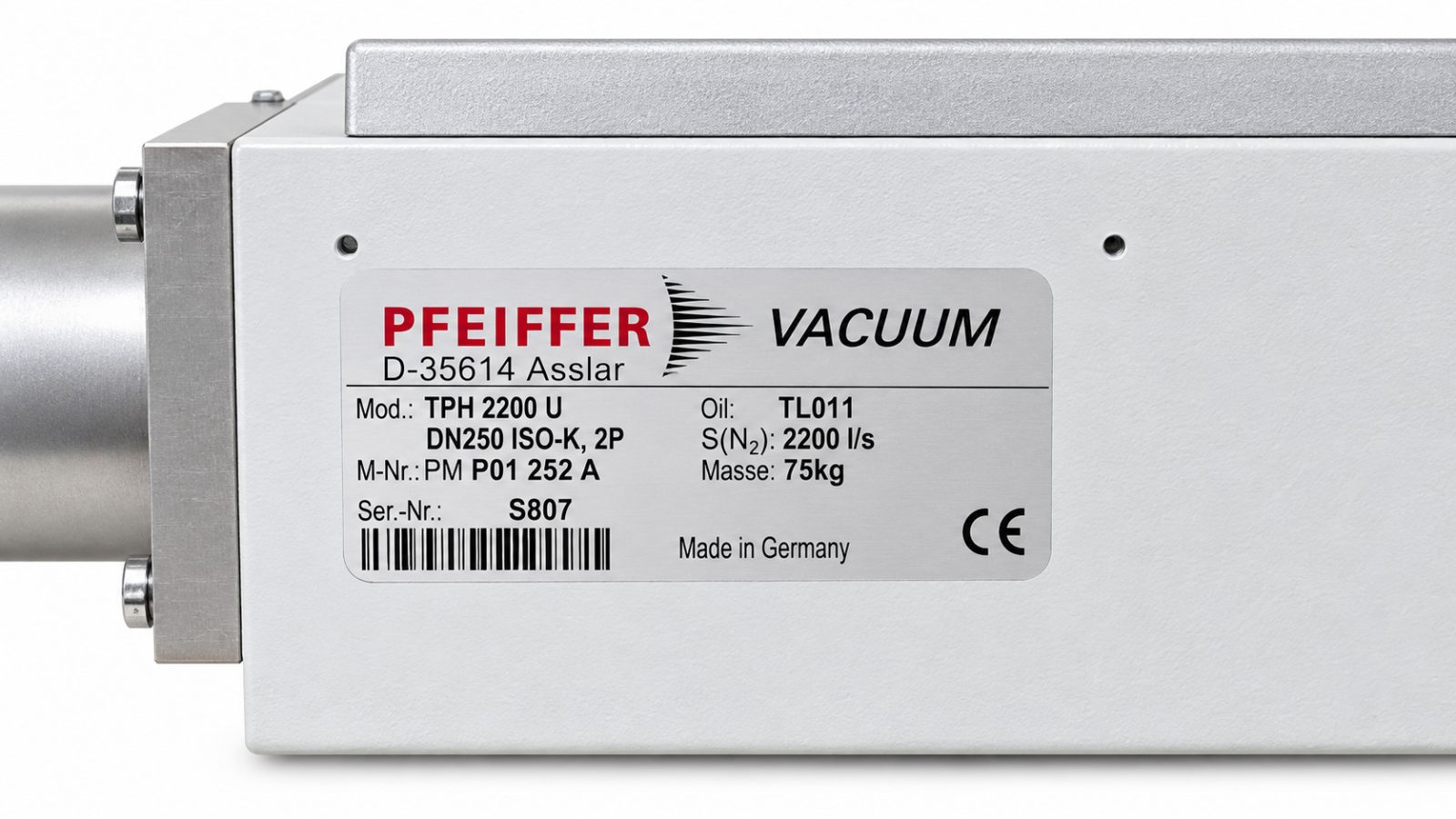

ManufacturerPfeiffer Vacuum, Asslar (Made in Germany)
ModelTPH 2200 U
TypeTurbomolecular / high-vacuum pump
ConnectionDN 250 ISO-K
Pumping speedapprox. 2,200 l/s (N₂) · 3,200 l/s (He) · 2,800 l/s (H₂)
Part no.PM P01 252 A
Serial no.S807
Weightapprox. 75 kg (per nameplate)
Angle valvePfeiffer EVB 063 PA, DN 63 ISO-K, 24 V DC, electro-pneumatic
ConditionUsed, with signs of wear – ran before dismantling, stored since
Deliverypickup or freight shipping (size/weight)
Viewingby appointment
Inquire now More lab equipment
At a glance

Highlights & benefits

Large TPH 2200 U turbomolecular pump (DN 250 ISO-K)
High pumping speed ~2,200 l/s (N₂)
Extensive component package (valves, flanges, tubing)
Pfeiffer Vacuum brand quality – Made in Germany
Ran before dismantling, in storage since
Applications

Ideal for

High-vacuum generation
Research & industry
Plant engineering & vacuum technology
Reuse of high-quality vacuum components
